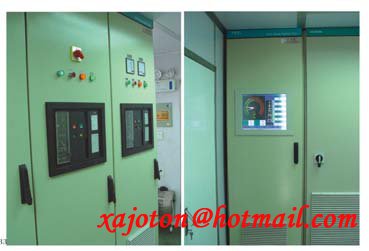

1, MCC, control system is the whole well site electric power distribution, control, measure and protection center, responsible for the drill floor area, pump area, well water tank farm, centralization and well site occupancy, as well as life and so on various regional power control and management.Control system consists of six low-voltage distribution cabinet group, including the power supply into line ark, fixed line ark and soft start cabinet.
2, into the ark, according to customer's specific requirements put reasonable position, ark with undervoltage, shunt, overload trip, etc, into the line switch with a case, on the electric interlock, in any case, only allow a switch and interpretation, satisfies the requirement of system load.
• 3, on the use of the outlet ark according to configuration, qualification using plug connection.
4, soft start cabinet, controlled by "yi tuo three ways, each cabinet with a soft starter and three by the motor control circuit, the same starting cabinet wiring, soft start control system by switching power supply, PLC and electronic soft starter. TAG：
